DUJ-SS1000x00

Click to enlarge photo

Click to enlarge photo

General Information
Part Name:

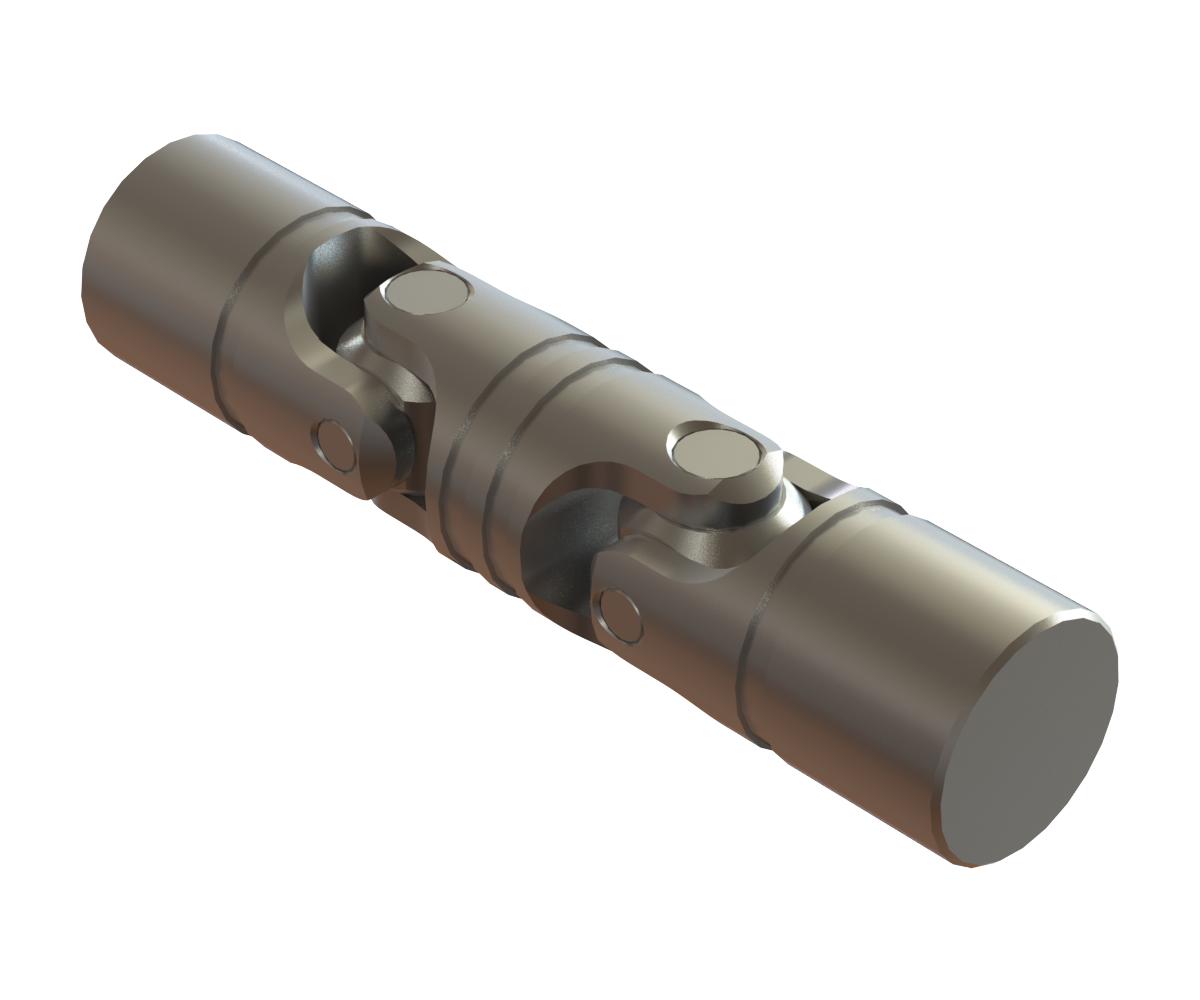

Stainless Steel - Double Universal Joint
Joint Outside Diameter Nominal D (in):
1"
Product Specifications
Part Type:
Double Universal Joint
Part Design:
Stainless Steel
Part Style:
Pin & Block - Friction Bearing
Part Material:
Stainless Steel
Performance Data
Ultimate Torque (in-lbf):
1420
Ultimate Torque (Nm):
160.50
Torque Rating (in-lbf):
284.0
Torque Rating (Nm):
32.1
Operating_Angle:
90

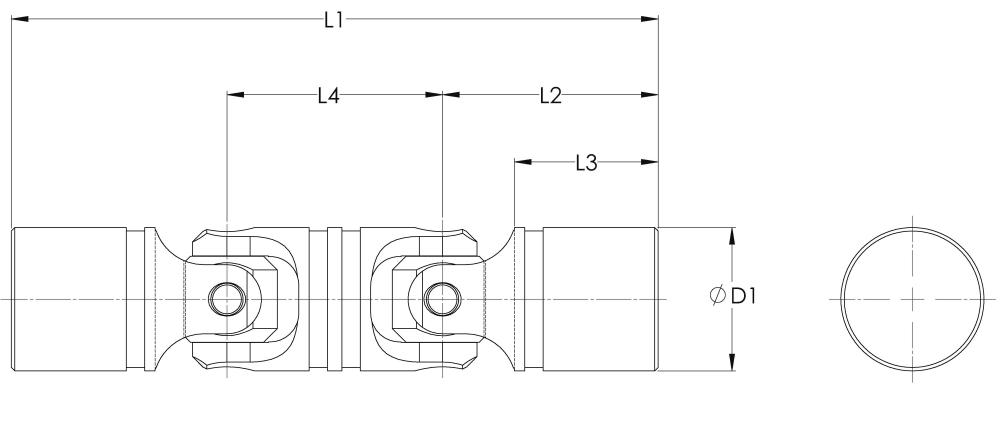

Dimensional Data
Joint Outside Diameter D (in):
0.995
Joint Outside Diameter D (mm):
25.30
Overall Length L1 (in):
4.875
Overall Length L1 (mm):
123.80
Yoke Length L2 (in):
1.688
Yoke Length L2 (mm):
42.90
Hub Depth L3 (in):
1.190
Hub Depth L3 (mm):
30.20
Bore Type:
Solid
Additional info:

Maximum Parallel Offset 1.06" [26.9mm]
Material Yokes = AISI 303 [1.4305], Material Pins & Blocks = AISI 416 [1.4005]
