DUJ-SS625x313K

Click to enlarge photo

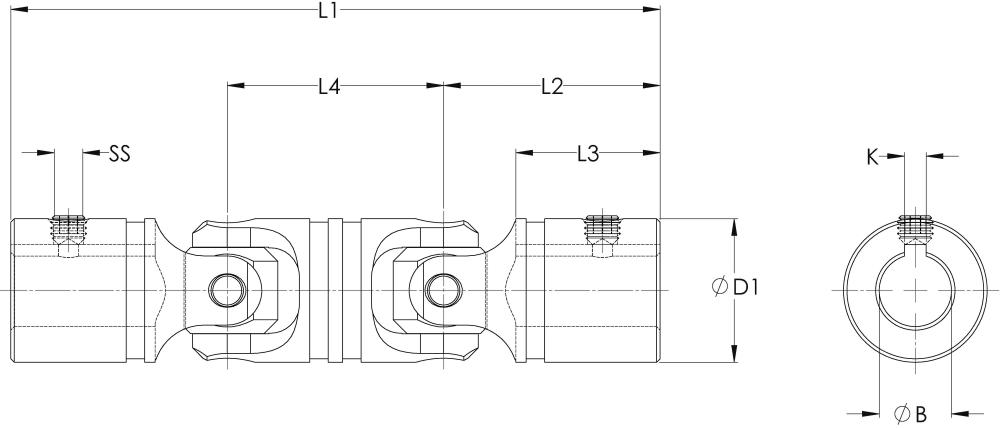

Download Reference Drawings
Download CAD

General Information

Part Name:

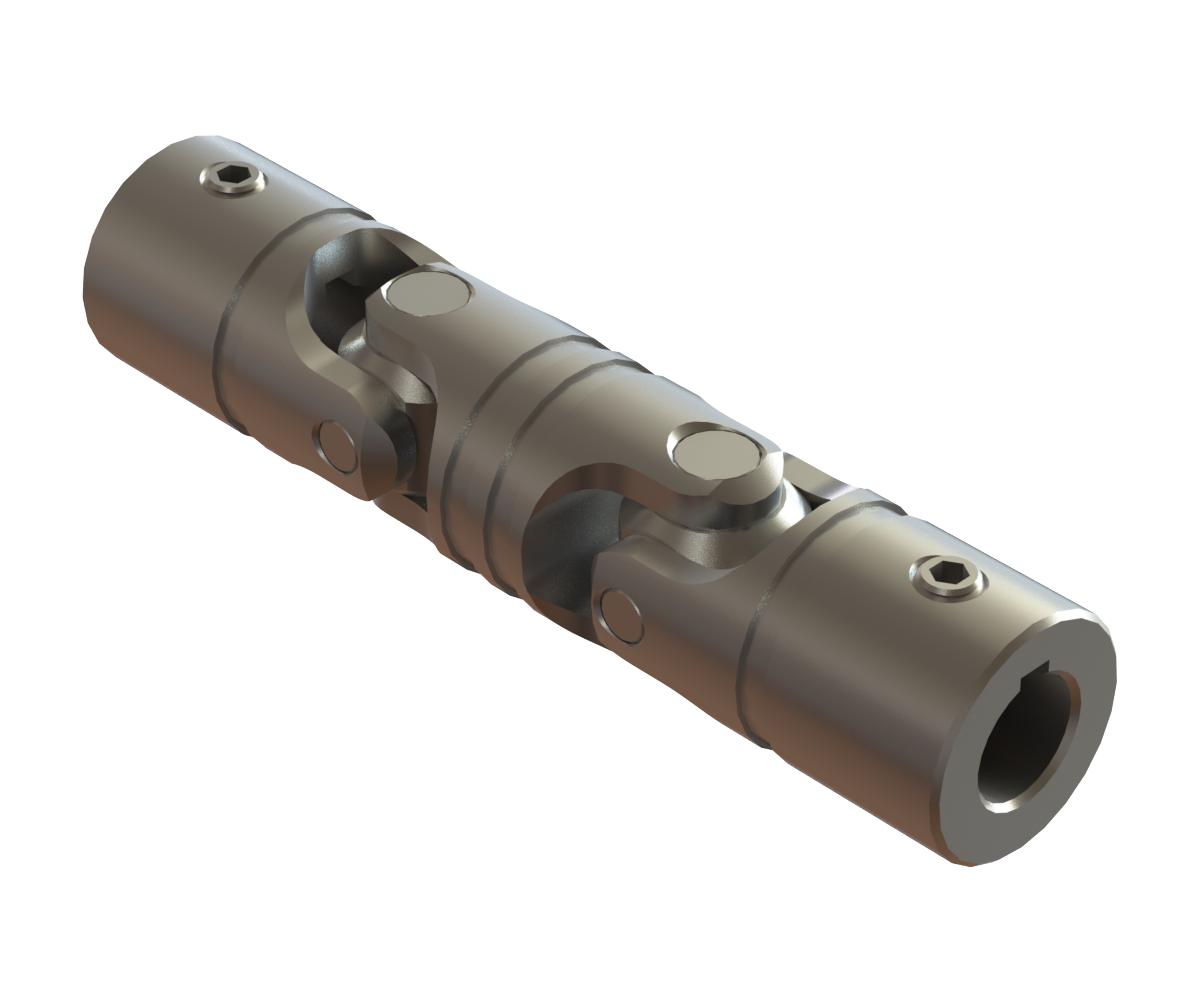

Stainless Steel - Double Universal Joint

Joint Outside Diameter Nominal D (in):

5/8"

Product Specifications

Part Type:

Double Universal Joint

Part Design:

Stainless Steel

Part Style:

Pin & Block - Friction Bearing

Part Material:

Stainless Steel

Performance Data

Ultimate Torque (in-lbf):

430

Ultimate Torque (Nm):

48.60

Torque Rating (in-lbf):

86.0

Torque Rating (Nm):

9.7

Operating_Angle:

Dimensional Data

Joint Outside Diameter D (in):

0.620

Joint Outside Diameter D (mm):

15.70

Overall Length L1 (in):

3.250

Overall Length L1 (mm):

82.60

Yoke Length L2 (in):

1.125

Yoke Length L2 (mm):

28.60

Hub Depth L3 (in):

0.810

Hub Depth L3 (mm):

20.60

Bore diameter B (in):

0.310

Bore diameter B (mm):

7.94

Keyway K (in):

3/32 x 3/64

Keyway K (mm):

2.38x1.19

Set Screw:

10-32x1/8

Bore Type:

Bore, Keyway & Setscrew

Additional info:

Maximum Parallel Offset 0.71" [18.0mm]
Material Yokes = AISI 303 [1.4305], Material Pins & Blocks = AISI 416 [1.4005]
