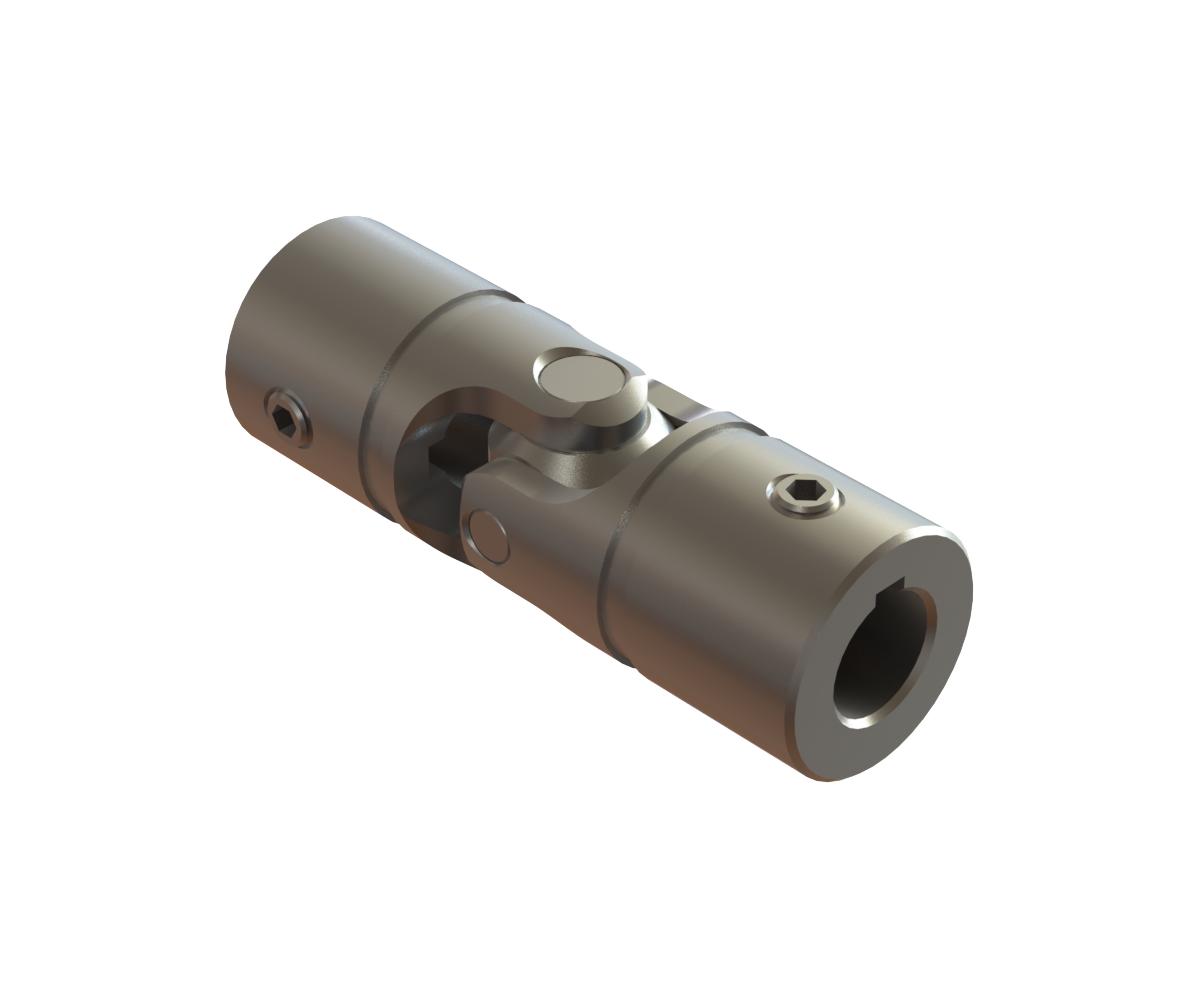

UJ-SS1500x18K

Click to enlarge photo

Click to enlarge photo

General Information
Part Name:
Metric Stainless Steel - Single Universal Joints
Size Code:
1495
Bore Sizing:
Metric
Inch Metric:
Metric
Product Specifications
Part Type:
Single Universal Joint
Part Design:
Heavy Duty
Part Style:
Pin & Block - Friction Bearing
Part Material:
Stainless Steel
Performance Data
Ultimate Torque (in-lbf):
7250
Ultimate Torque (Nm):
819.1
Torque Rating (in-lbf):
1450
Torque Rating (Nm):
164
Operating_Angle:
45

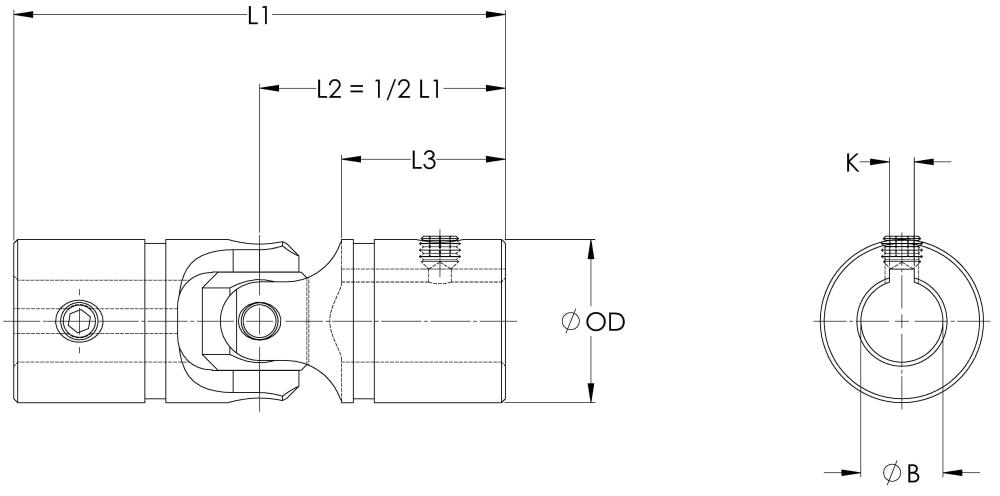

Dimensional Data
Joint Outside Diameter D (in):
1.5
Joint Outside Diameter D (mm):
37.97
Joint Outside Diameter Nominal D (in):
1-1/2"
Joint Outside Diameter Nominal D (mm):
38
Insp. Hole Location H (in):
n/a
Insp. Hole Location H (mm):
n/a
Overall Length L1 (in):
4.25
Overall Length L1 (mm):
108
Yoke Length L2 (in):
2.13
Yoke Length L2 (mm):
54
Hub Depth L3 (in):
1.4
Hub Depth L3 (mm):
35.6
Bore diameter B (in):
0.7087
Bore diameter B (mm):
18.000
Keyway K (in):
.2362x.819
Keyway K (mm):
6x20.8
Set Screw:
M6x1.0 x 6mm
Bellows:
n/a
Additional info:
n/a
""
