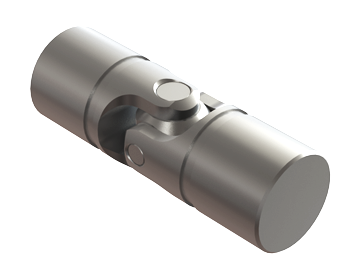

Metric Stainless Single

Belden's stainless single universal joints are requested for special applications with high strength requirements and harsh, corrosive or sterile environments. They are built using friction (plain) bearing design.

Features:

  • Outside Diameter: 0.37"-4.00" [9.4mm-100mm]
  • Operating Speed: up to 1000 RPM (depending on lubrication)
  • Operating Angle: up to 45°
  • Minimal Play
  • Regular re-lubrication required or joint can be fitted with grease packed boots.
  • Material for Yokes: Stainless Steel AISI 303 [EU/DIN 1.4305 ] precision honed & ground
  • Material for Pins & Blocks: Stainless Steel AISI 416 [EU/DIN 1.4005] hardened and precision ground
  • Hub ends available with several standard bore configurations (plain bore, keyway, hex- and square bore)



Torque Values by Outside Diameter

Nominal OD (in) Max. Operating Torque Lb-in [N-m] Ultimate Torque Lb-in [N-m]
3/8" 15 [1.7] 75 [8.5]
1/2" 48 [5.4] 240 [27]
5/8" 95 [10] 475 [53]
3/4" 175 [19] 875 [98]
7/8" 250 [28] 1260 [142]
1" 315 [35] 1575 [178]
1-1/8" 450 [50] 2250 [254]
1-1/4" 680 [76] 3400 [384]
1-1/2" 1450 [163] 7250 [819]
1-3/4" 2100 [237] 10500 [1186]

Pages

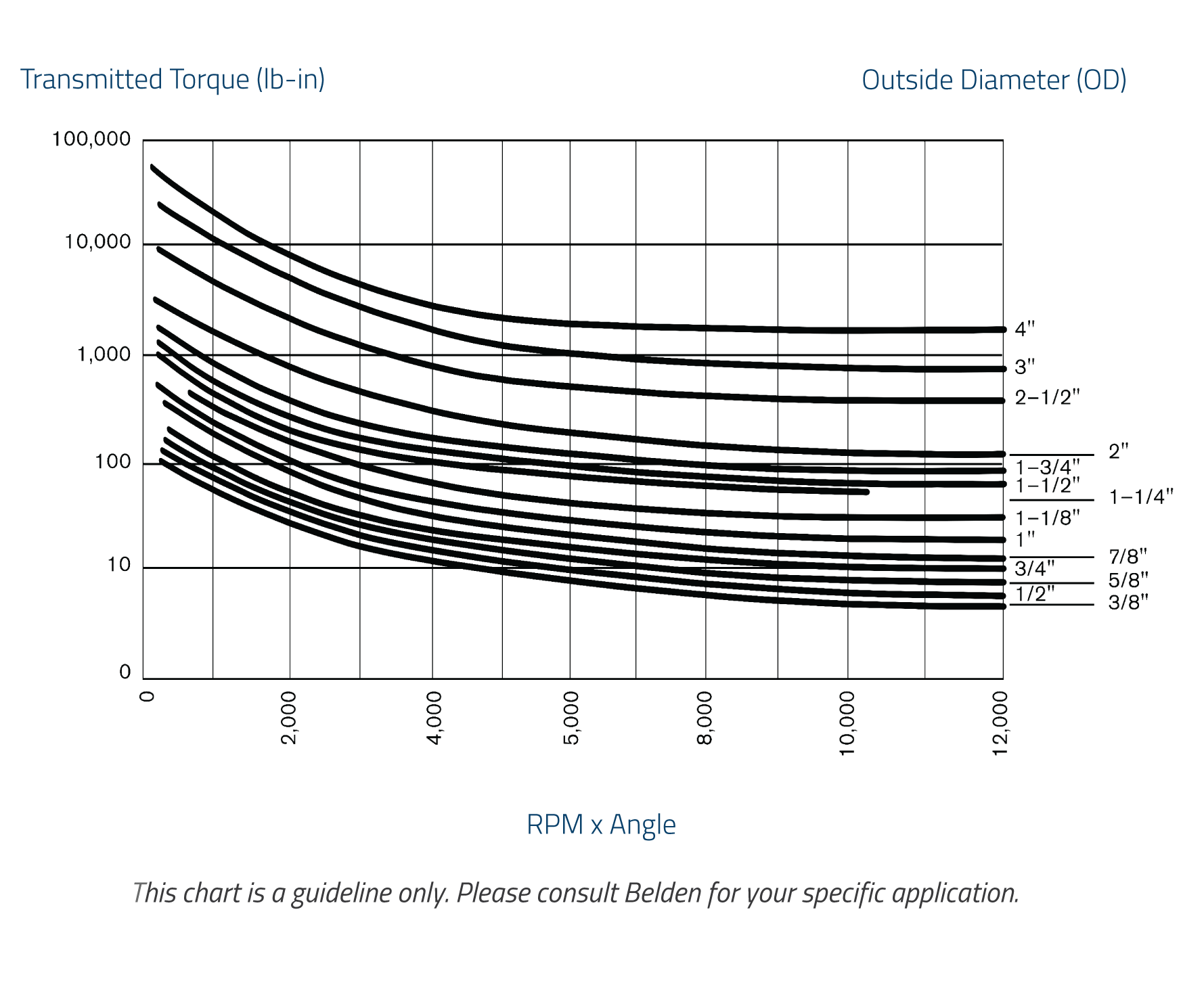

Performance Rating Curves

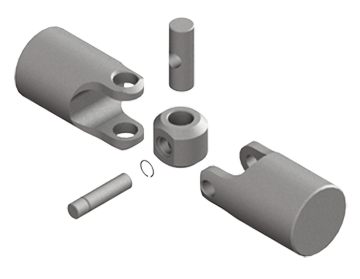

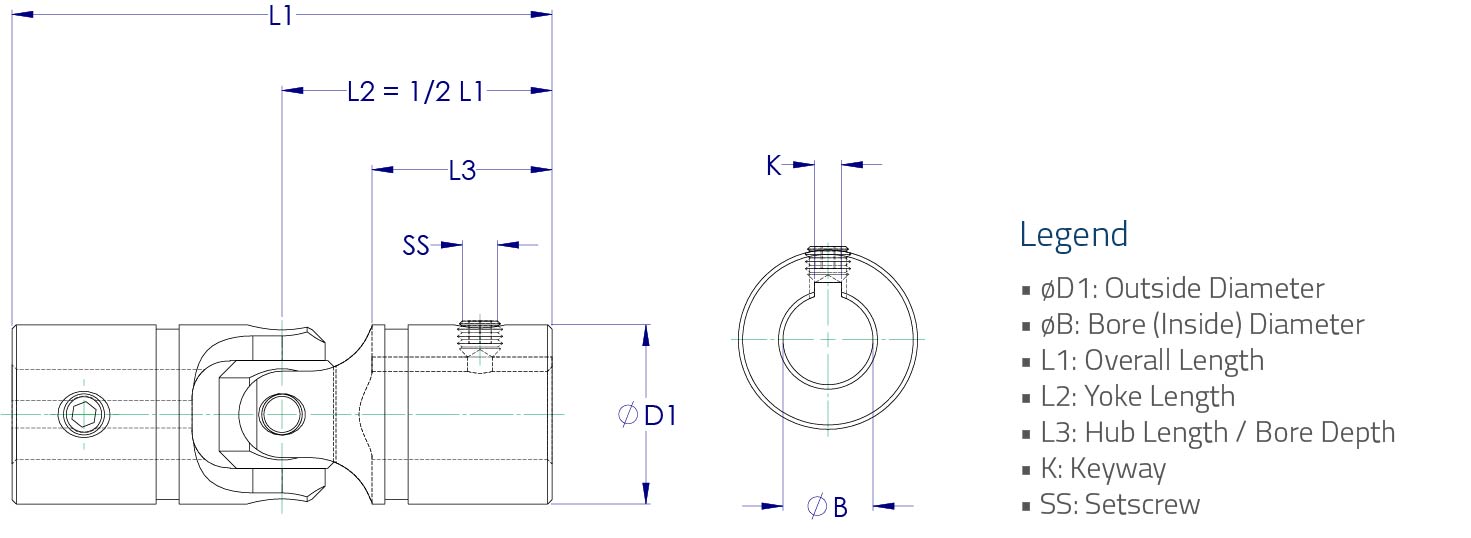

Product Diagram

Matching Products
Part Number ØD1 Nominal (in) ØD1 (mm) ØB (mm) L1 (mm) L2 (mm) L3 (mm) K (mm) SS (mm)
UJ-SS375x05 3/8" 9.40 5.000 44.50 22.20 16.80 n/a n/a
UJ-SS500x06 1/2" 12.57 6.000 50.80 25.40 18.30 n/a n/a
UJ-SS625x08K 5/8" 15.75 8.000 57.20 28.60 20.90 2x9 M3x0.5 x 3mm
UJ-SS625x08 5/8" 15.75 8.000 57.20 28.60 20.90 n/a n/a
UJ-SS750x10 3/4" 18.92 10.000 76.20 38.10 28.10 n/a n/a
UJ-SS750x10K 3/4" 18.92 10.000 76.20 38.10 28.10 3x11.4 M3x0.5 x 3mm
UJ-SS875x10 7/8" 22.10 10.000 76.20 38.10 26.20 n/a n/a
UJ-SS875x10K 7/8" 22.10 10.000 76.20 38.10 26.20 3x11.4 M3x0.5 x 5mm
UJ-SS875x12 7/8" 22.10 12.000 76.20 38.10 26.20 n/a n/a
UJ-SS875x12K 7/8" 22.10 12.000 76.20 38.10 26.20 4x13.8 M4x0.7 x 4mm
UJ-SS1000x12 1" 25.27 12.000 85.70 42.90 30.20 n/a n/a
UJ-SS1000x12K 1" 25.27 12.000 85.70 42.90 30.20 4x13.8 M4x0.7 x 5mm
UJ-SS1125x14 1-1/8" 28.45 14.000 88.90 44.50 30.40 n/a n/a
UJ-SS1125x14K 1-1/8" 28.45 14.000 88.90 44.50 30.40 5x16.3 M5x0.8 x 5mm
UJ-SS1250x16 1-1/4" 31.62 16.000 95.30 47.60 31.80 n/a n/a
UJ-SS1250x16K 1-1/4" 31.62 16.000 95.30 47.60 31.80 5x16.3 M5x0.8 x 5mm
UJ-SS1500x18 1-1/2" 37.97 18.000 108.00 54.00 35.60 n/a n/a
UJ-SS1500x18K 1-1/2" 37.97 18.000 108.00 54.00 35.60 6x20.8 M6x1.0 x 6mm
UJ-SS1500x20 1-1/2" 37.97 20.000 108.00 54.00 35.60 n/a n/a
UJ-SS1500x20K 1-1/2" 37.97 20.000 108.00 54.00 35.60 6x22.8 M6x1.0 x 6mm
UJ-SS1750x22 1-3/4" 44.32 22.000 127.00 63.50 40.80 n/a n/a
UJ-SS1750x22K 1-3/4" 44.32 22.000 127.00 63.50 40.80 6x24.8 M6x1.0 x 8mm
UJ-SS2000x25 2" 50.67 25.000 139.70 69.90 43.20 n/a n/a
UJ-SS2000x25K 2" 50.67 25.000 139.70 69.90 43.20 8X28.3 M8x1.25 x 8mm
UJ-SS2000x30 2" 50.67 30.000 139.70 69.90 43.20 n/a n/a
UJ-SS2000x30K 2" 50.67 30.000 139.70 69.90 43.20 8x33.3 M8x1.25 x 8mm
UJ-SS2500x30 2-1/2" 63.37 30.000 177.80 88.90 53.10 n/a n/a
UJ-SS2500x30K 2-1/2" 63.37 30.000 177.80 88.90 53.10 8x33.3 M8x1.25 x 12mm
UJ-SS2500x35 2-1/2" 63.37 35.000 177.80 88.90 53.10 n/a n/a
UJ-SS2500x35K 2-1/2" 63.37 35.000 177.80 88.90 53.10 10X38.3 M10x1.5 x 10mm
""
