375 BOOT

Click to enlarge photo

Click to enlarge photo

General Information
Part Name:

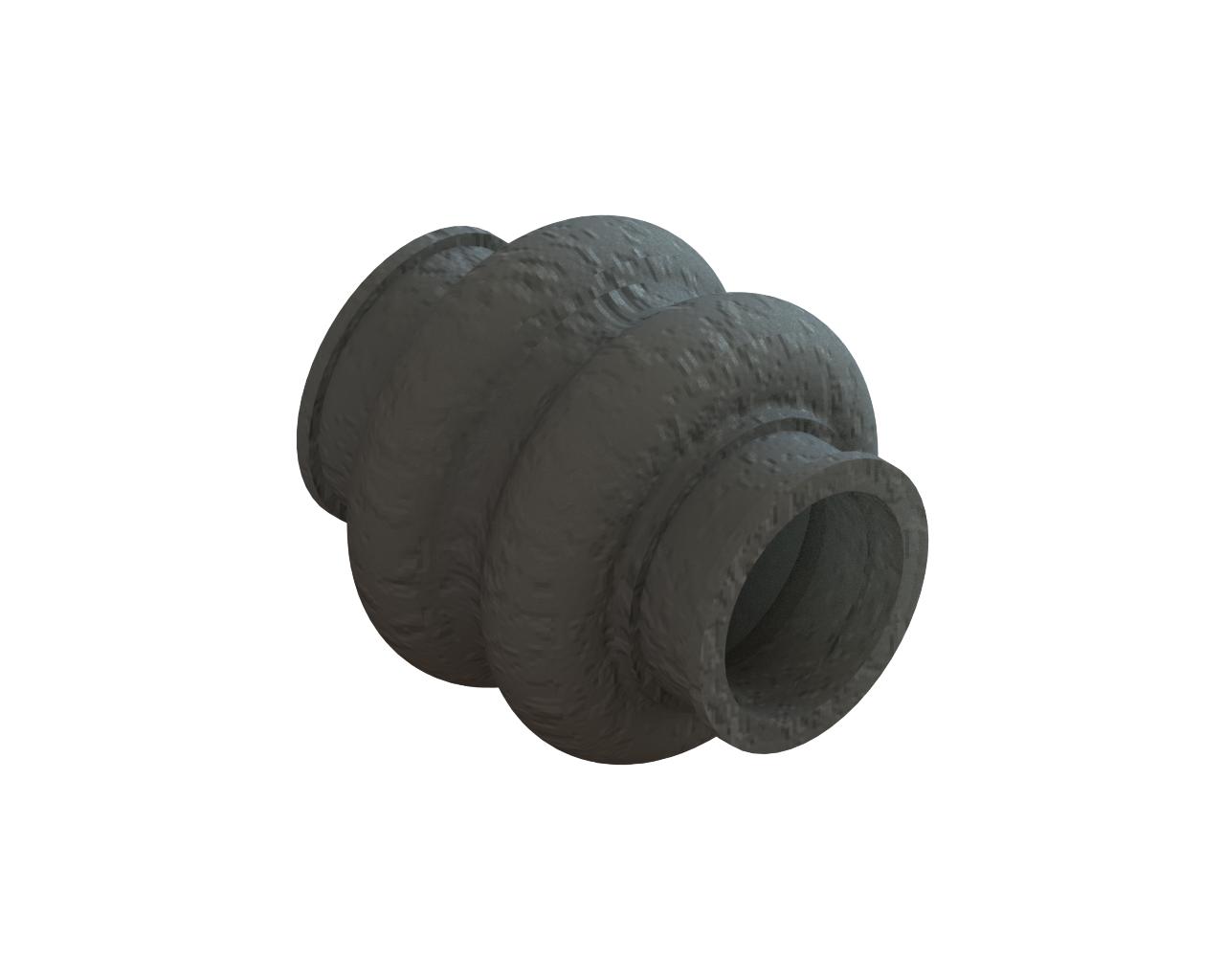

Boot Cover - Single Universal Joint
Joint Outside Diameter Nominal D (in):
3/8"
Product Specifications
Part Type:
Single Universal Joint
Part Design:
Boot Cover
Part Style:
Boot Cover
Part Material:
Nitrile
Performance Data
Operating_Angle:
45

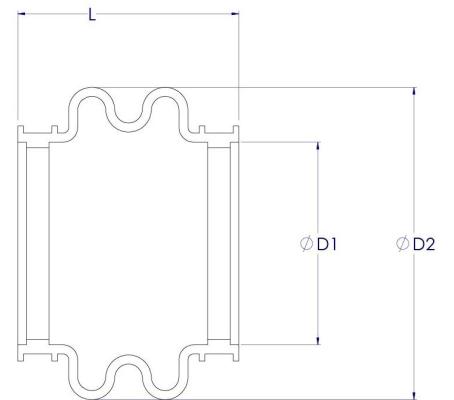

Dimensional Data
Joint Outside Diameter D (in):
0.370
Joint Outside Diameter D (mm):
9.40
Overall Length L1 (in):
0.880
Overall Length L1 (mm):
22.40
Bellows:
Double
Additional info:

Excellent resistance to petroleum-based oils and fuels, silicone greases, hydraulic fluids, water and alcohol.
