750 BOOT-SL

Click to enlarge photo

Click to enlarge photo

General Information
Part Name:

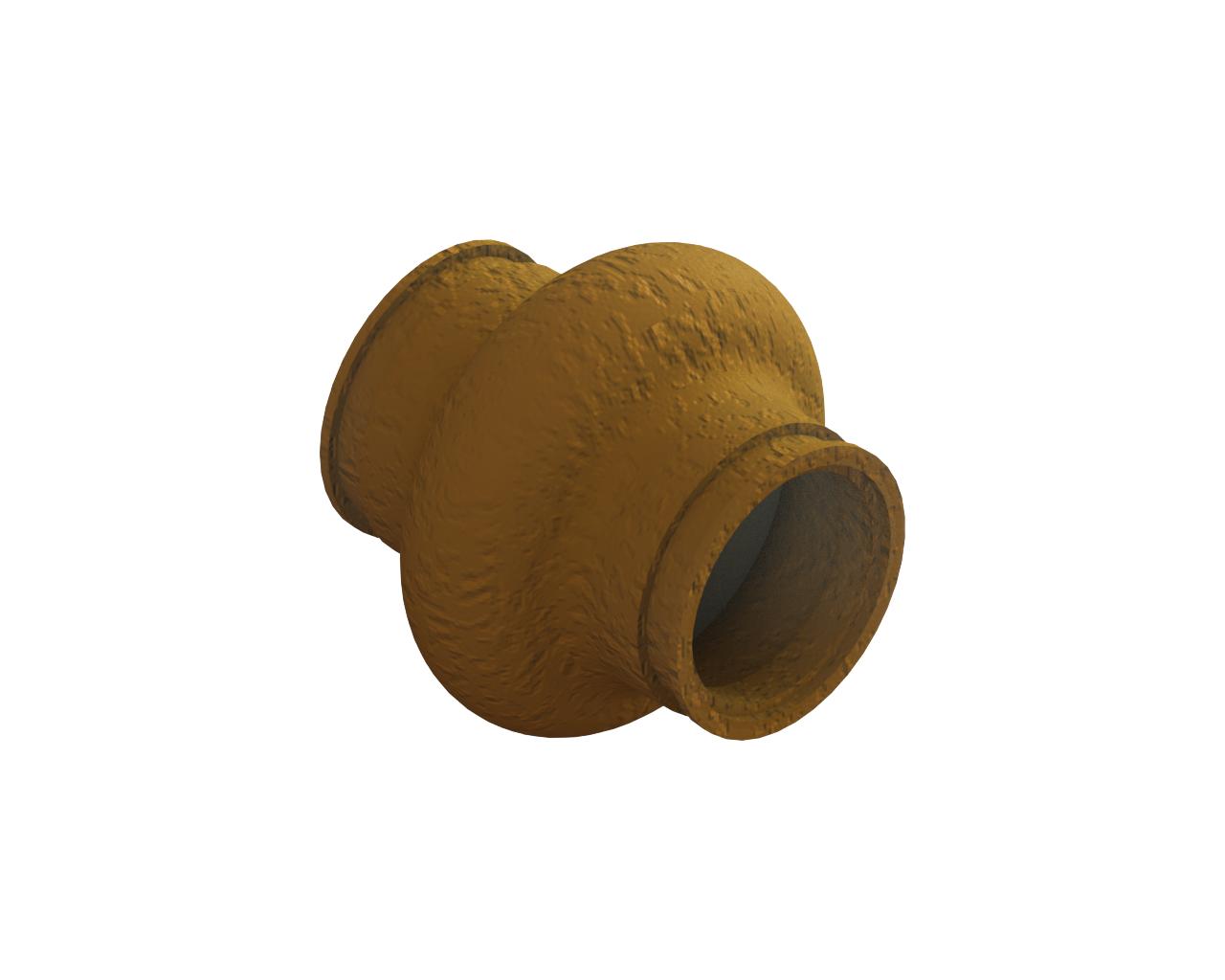

Boot Cover - Single Universal Joint
Joint Outside Diameter Nominal D (in):
3/4"
Product Specifications
Part Type:
Single Universal Joint
Part Design:
Boot Cover
Part Style:
Boot Cover
Part Material:
Silicone
Performance Data
Operating_Angle:
45
Dimensional Data
Joint Outside Diameter D (in):
0.745
Joint Outside Diameter D (mm):
18.90
Overall Length L1 (in):
1.250
Overall Length L1 (mm):
31.80
Bellows:
Single
Additional info:

Recommended for high temperature applications. High resistance to the aging effects of sunlight and ozone. Non-Toxic.
