DUJ-HD625x313K

Click to enlarge photo

Click to enlarge photo

General Information
Part Name:

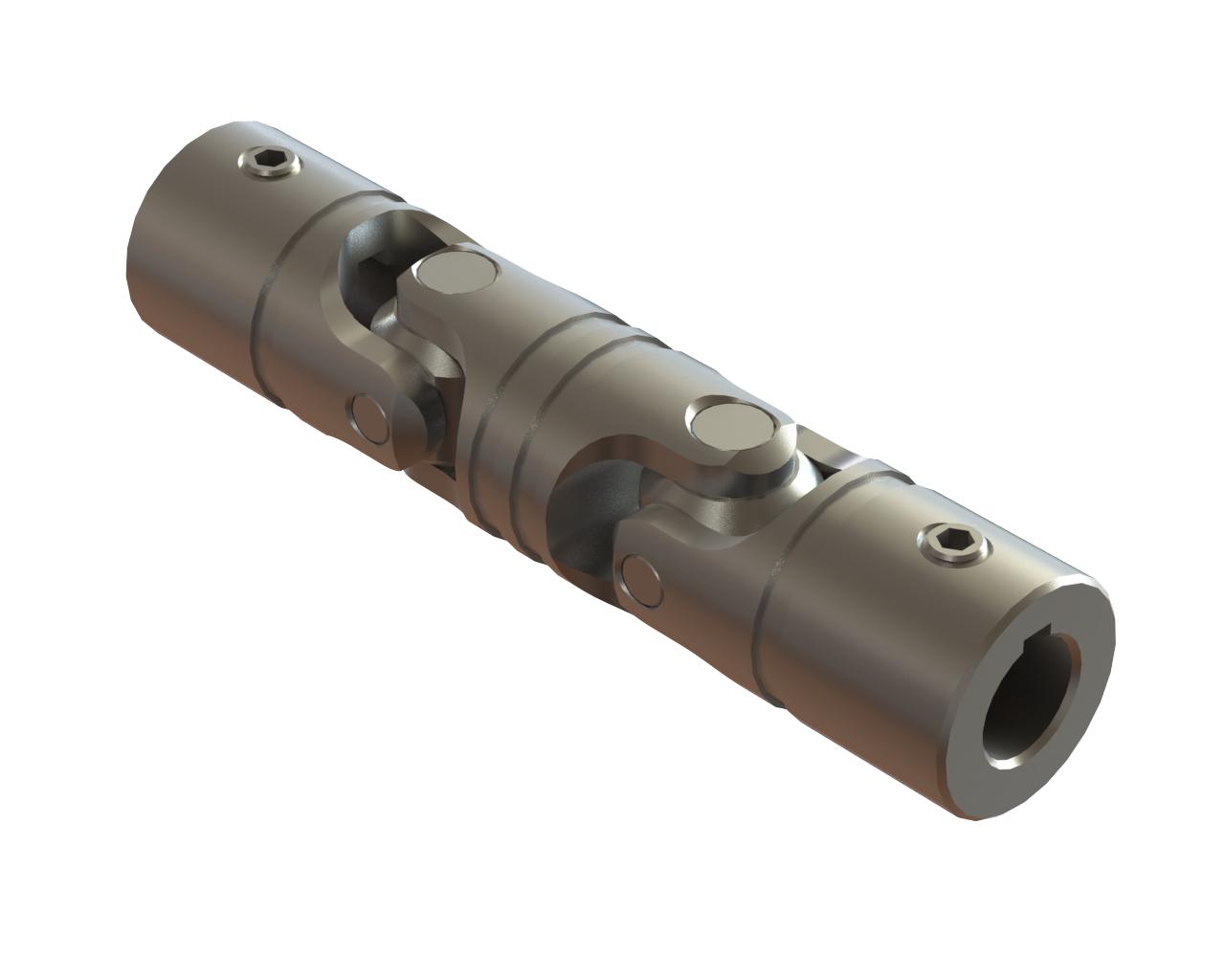

Heavy Duty - Double Universal Joint
Joint Outside Diameter Nominal D (in):
5/8"
Product Specifications
Part Type:
Double Universal Joint
Part Design:
Heavy Duty
Part Style:
Pin & Block - Friction Bearing
Part Material:
Alloy Steel
Performance Data
Ultimate Torque (in-lbf):
610
Ultimate Torque (Nm):
68.90
Torque Rating (in-lbf):
122.0
Torque Rating (Nm):
13.8
Operating_Angle:
90

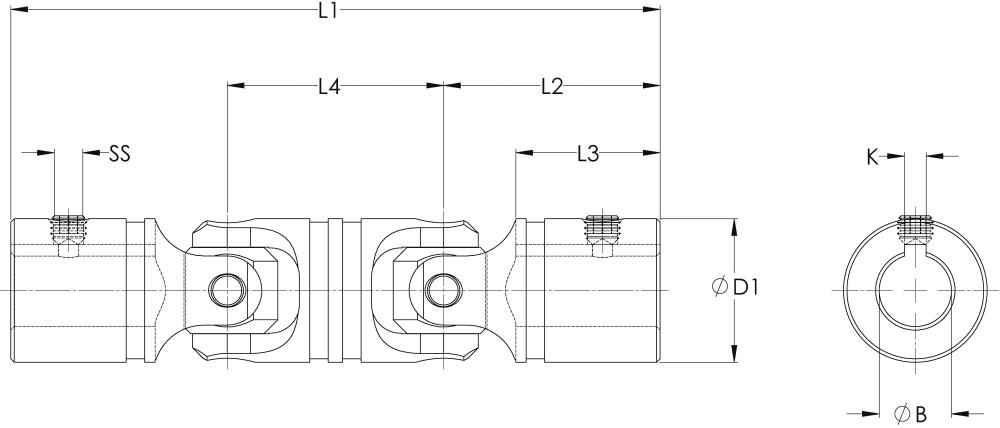

Dimensional Data
Joint Outside Diameter D (in):
0.620
Joint Outside Diameter D (mm):
15.70
Overall Length L1 (in):
3.250
Overall Length L1 (mm):
82.60
Yoke Length L2 (in):
1.125
Yoke Length L2 (mm):
28.60
Hub Depth L3 (in):
0.810
Hub Depth L3 (mm):
20.60
Bore diameter B (in):
0.310
Bore diameter B (mm):
7.94
Keyway K (in):
3/32 x 3/64
Keyway K (mm):
2.38x1.19
Set Screw:
10-32x1/8
Bore Type:
Bore, Keyway & Setscrew
Additional info:

Maximum Parallel Offset 0.71" [18.0mm]
