UJ-LV1000

Click to enlarge photo

Click to enlarge photo

Hide General Information

Part Name:

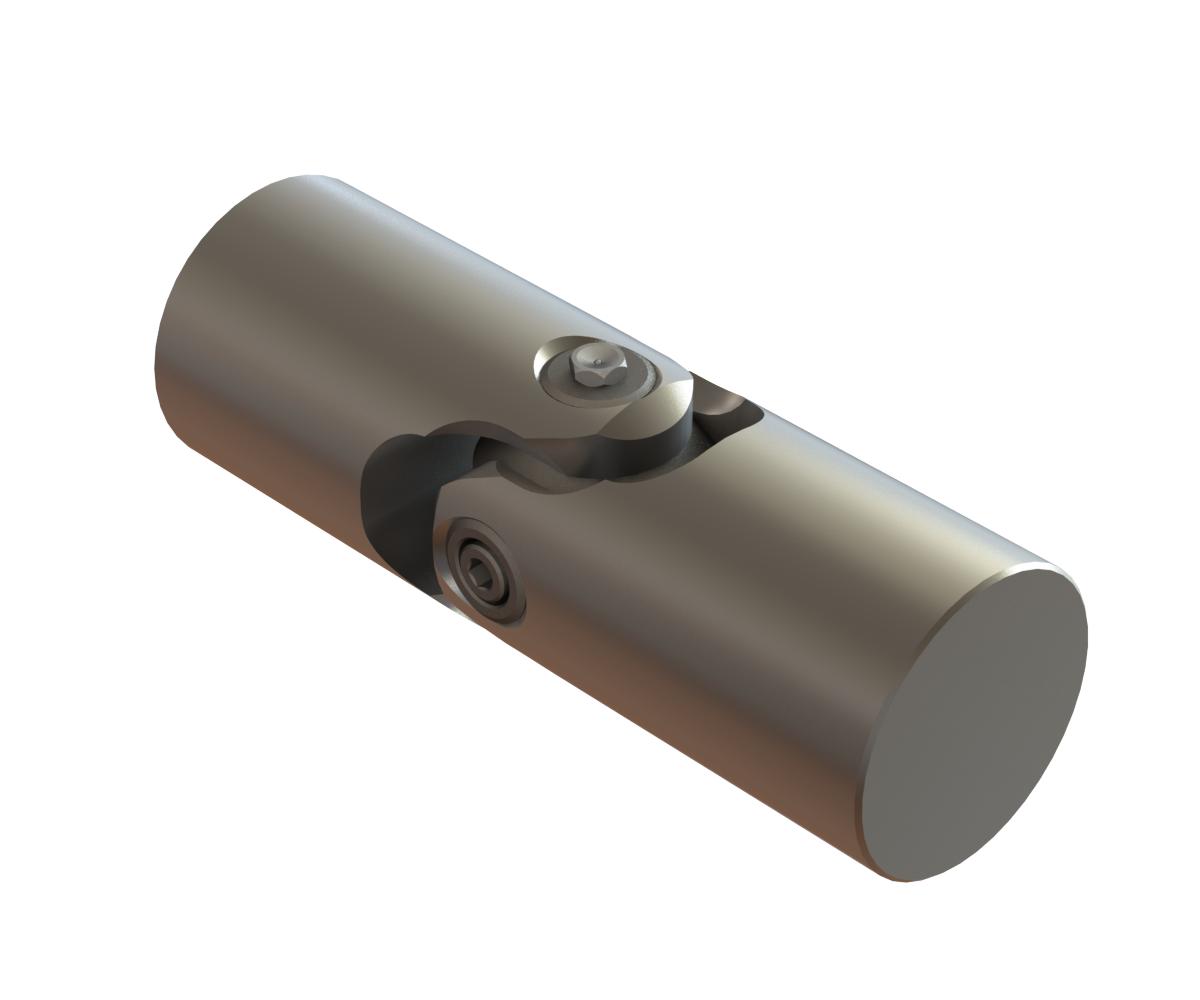

Leveler Style - Single Universal Joint

Size Code:

1000

Bore Sizing:

Inch

Inch Metric:

Inch

Hide Product Specifications

Part Type:

Single Universal Joint

Part Design:

Leveler Style

Part Style:

Pin & Block - Friction Bearing

Part Material:

Alloy Steel

Hide Performance Data

Ultimate Torque (in-lbf):

5400

Ultimate Torque (Nm):

610.20

Torque Rating (in-lbf):

1080

Torque Rating (Nm):

122

Operating_Angle:

30

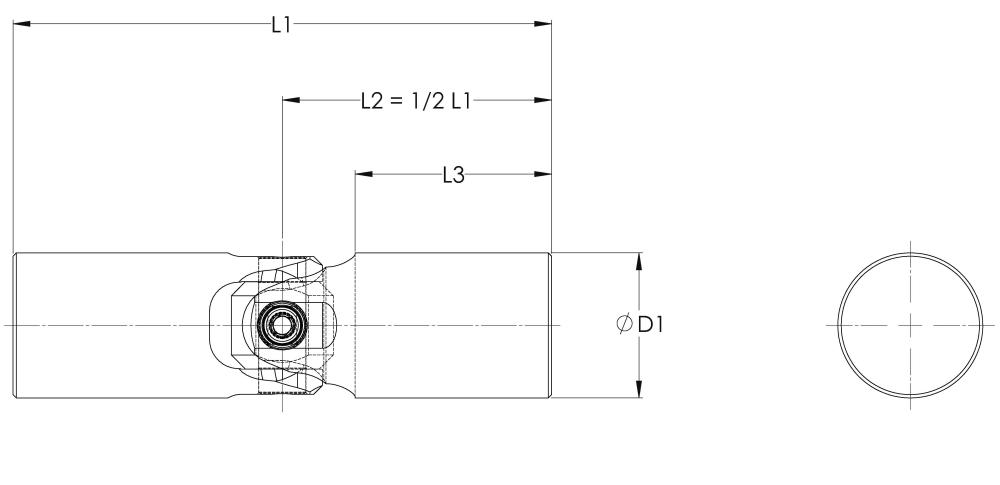

Hide Dimensional Data

Joint Outside Diameter D (in):

1.00

Joint Outside Diameter D (mm):

25.40

Joint Outside Diameter Nominal D (in):

1"

Joint Outside Diameter Nominal D (mm):

n/a

Insp. Hole Location H (in):

n/a

Insp. Hole Location H (mm):

n/a

Overall Length L1 (in):

4.25

Overall Length L1 (mm):

108.00

Yoke Length L2 (in):

2.13

Yoke Length L2 (mm):

54.00

Hub Depth L3 (in):

1.62

Hub Depth L3 (mm):

41.10

Bore diameter B (in):

n/a

Bore diameter B (mm):

n/a

Keyway K (in):

n/a

Keyway K (mm):

n/a

Set Screw:

n/a

Bore Type:

Solid

Bellows:

n/a

Additional info:

also available in stainless steel and customized bores
