UJ-SS750x00

Click to enlarge photo

Click to enlarge photo

General Information
Part Name:

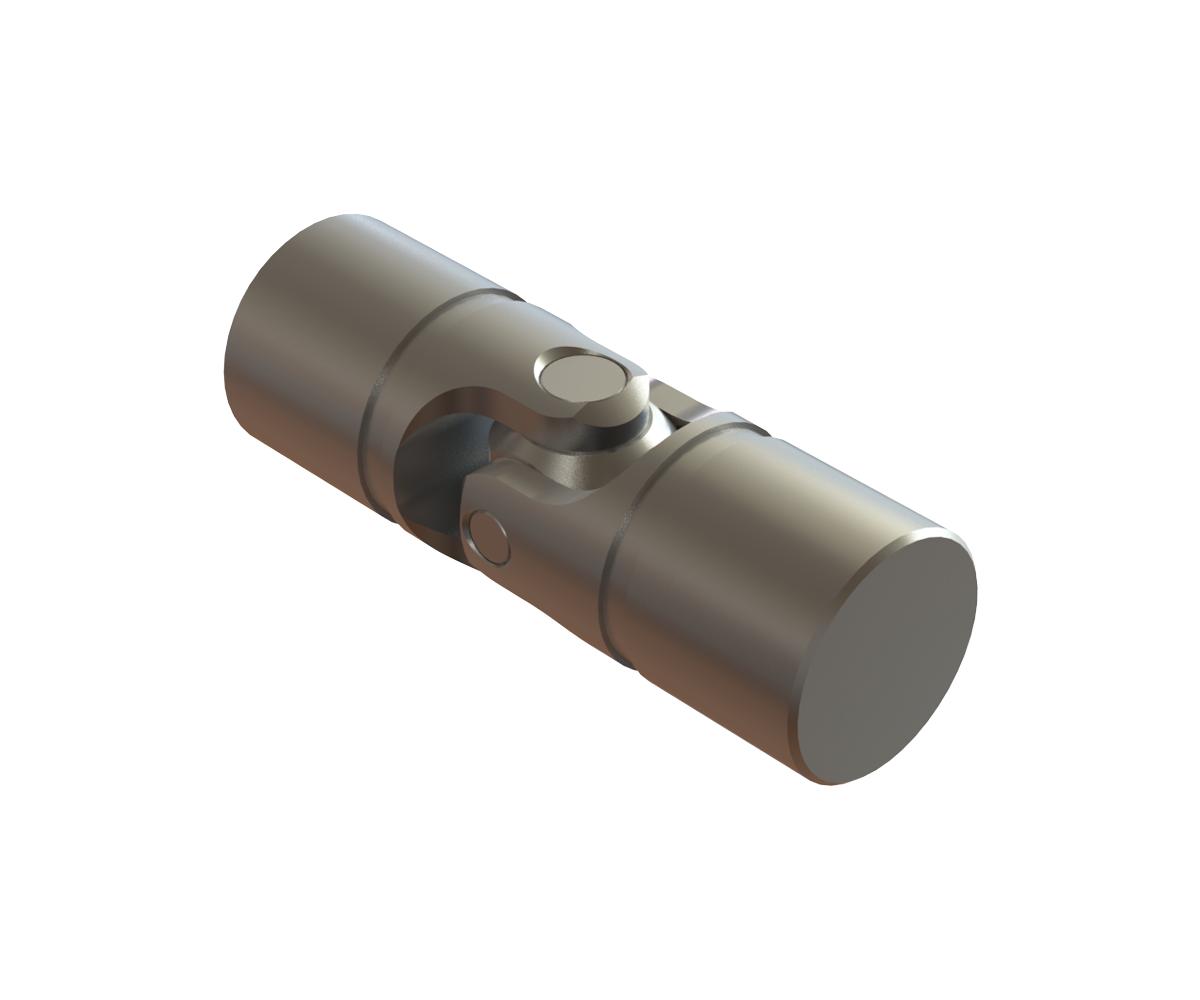

Stainless Steel - Single Universal Joint
Joint Outside Diameter Nominal D (in):
3/4"
Product Specifications
Part Type:
Single Universal Joint
Part Design:
Stainless Steel
Part Style:
Pin & Block - Friction Bearing
Part Material:
Stainless Steel
Performance Data
Ultimate Torque (in-lbf):
875
Ultimate Torque (Nm):
98.90
Torque Rating (in-lbf):
175.0
Torque Rating (Nm):
19.8
Operating_Angle:
45

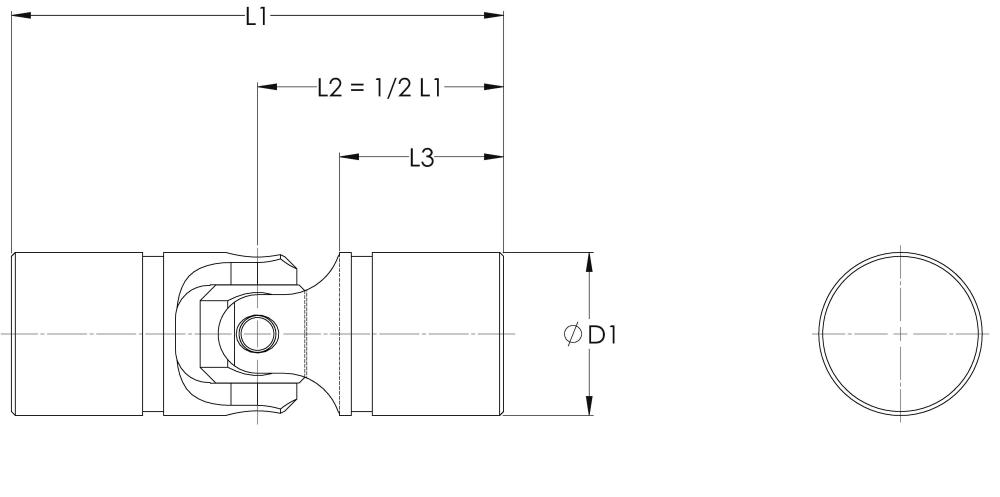

Dimensional Data
Joint Outside Diameter D (in):
0.745
Joint Outside Diameter D (mm):
18.90
Overall Length L1 (in):
2.690
Overall Length L1 (mm):
68.30
Yoke Length L2 (in):
1.345
Yoke Length L2 (mm):
34.20
Hub Depth L3 (in):
0.950
Hub Depth L3 (mm):
24.10
Bore Type:
Solid
Additional info:

Material Yokes = AISI 303 [1.4305], Material Pins & Blocks = AISI 416 [1.4005]
