Stainless-Steel Double Universal Joints

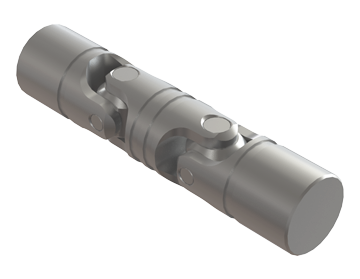

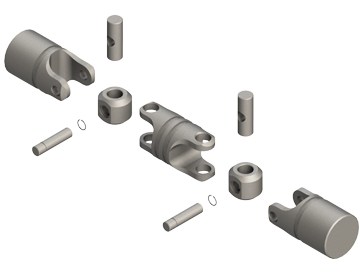

Belden’s stainless double universal joints provide the same reliability and service life as the single universal joints, with a maximum combined working angle of 90°. Double universal joints provide accurate positioning and flexibility under higher operating angles. The joint yokes are 303 and the pins & blocks are hardened 416 stainless steel to provide higher strength and improved wear resistance. Components can be made from other grades of stainless steel. For additional environmental protection, pins & blocks can be covered by lubricant retaining boots.
Does your application require extreme corrosion protection? Click here for information on specialty stainless steel options.
Features:
- Outside Diameter: 0.37"-4.00" [9.4mm-100mm]
- Operating Speed: up to 1000 RPM (depending on lubrication)
- Operating Angle: up to 90° (45° per joint)
- Minimal Play
- Regular re-lubrication required or joint can be fitted with grease packed boots.
- Material for Yokes: Stainless Steel AISI 303 [EU/DIN 1.4305 ] precision honed & ground
- Material for Pins & Blocks: Stainless Steel AISI 416 [EU/DIN 1.4005] hardened and precision ground
- Hub ends available with several standard bore configurations (plain bore, keyway, hex- and square bore)
Torque Values by Outside Diameter
| Nominal OD (in) | Max. Operating Torque Lb-in [N-m] | Ultimate Torque Lb-in [N-m] |
|---|---|---|
| 3/8" | 14 [1.6] | 70 [7.9] |
| 1/2" | 43 [4.9] | 215 [24] |
| 5/8" | 86 [9.7] | 430 [48] |
| 3/4" | 158 [17] | 790 [89] |
| 7/8" | 225 [25] | 1125 [127] |
| 1" | 284 [32] | 1420 [160] |
| 1-1/8" | 405 [45] | 2025 [228] |
| 1-1/4" | 612 [69] | 3060 [345] |
| 1-1/2" | 1305 [147] | 6525 [737] |
| 1-3/4" | 1890 [213] | 9450 [1067] |
Performance Rating Curves
Matching Products
| Part Number | ØD1 Nominal (in) | ØD1 Nominal (mm) | ØD1 (in) | ØD1 (mm) | H (in) | H (mm) | D2 (in) | D2 (mm) | ØB (in) | ØB (mm) | L1 (in) | L1 (mm) | L2 (in) | L2 (mm) | L3 (in) | L3 (mm) | L4 (in) | L4 (mm) | K (in) | K (mm) | SS | Bellows | Material | NSN | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DUJ-SS1500x00 | 1-1/2" | 1.50 | 38.00 | 6.56 | 166.70 | 2.13 | 54.00 | 1.40 | 35.60 | 2.31 | 58.70 | N/A | N/A | N/A | N/A | Stainless Steel | N/A | ||||||||
| DUJ-SS500x00 | 1/2" | 0.50 | 12.60 | 2.81 | 71.40 | 1.00 | 25.40 | 0.74 | 18.80 | 0.81 | 20.60 | N/A | N/A | N/A | N/A | Stainless Steel | N/A | ||||||||
| DUJ-SS2500x1250K | 2-1/2" | 2.50 | 63.40 | 1.25 | 31.75 | 11.06 | 281.00 | 3.50 | 88.90 | 2.09 | 53.10 | 4.06 | 103.20 | 1/4 x 1/8 | 6.35x3.12 | 3/8-16x1/2 | N/A | Stainless Steel | N/A | ||||||
| DUJ-SS875x438K | 7/8" | 0.87 | 22.10 | 0.44 | 11.11 | 4.38 | 111.10 | 1.50 | 38.10 | 1.03 | 26.20 | 1.38 | 34.90 | 3/32 x 3/64 | 2.38x1.19 | 10-32x3/16 | N/A | Stainless Steel | N/A | ||||||
| DUJ-SS1500x750 | 1-1/2" | 1.50 | 38.00 | 0.75 | 19.05 | 6.56 | 166.70 | 2.13 | 54.00 | 1.40 | 35.60 | 2.31 | 58.70 | N/A | N/A | N/A | N/A | Stainless Steel | N/A | ||||||
| DUJ-SS500x250 | 1/2" | 0.50 | 12.60 | 0.25 | 6.35 | 2.81 | 71.40 | 1.00 | 25.40 | 0.74 | 18.80 | 0.81 | 20.60 | N/A | N/A | N/A | N/A | Stainless Steel | N/A | ||||||
| DUJ-SS3000x00 | 3" | 3.00 | 76.10 | 14.00 | 355.60 | 4.63 | 117.50 | 3.00 | 76.20 | 4.75 | 120.70 | N/A | N/A | N/A | N/A | Stainless Steel | N/A | ||||||||
| DUJ-SS1000x00 | 1" | 1.00 | 25.30 | 4.88 | 123.80 | 1.69 | 42.90 | 1.19 | 30.20 | 1.50 | 38.10 | N/A | N/A | N/A | N/A | Stainless Steel | N/A | ||||||||
| DUJ-SS1500x750K | 1-1/2" | 1.50 | 38.00 | 0.75 | 19.05 | 6.56 | 166.70 | 2.13 | 54.00 | 1.40 | 35.60 | 2.31 | 58.70 | 3/16 x 3/32 | 4.76x2.38 | 5/16-18x5/16 | N/A | Stainless Steel | N/A | ||||||
| DUJ-SS500x250-1SS | 1/2" | 0.50 | 12.60 | 0.25 | 6.35 | 2.81 | 71.40 | 1.00 | 25.40 | 0.74 | 18.80 | 0.81 | 20.60 | N/A | N/A | 4-40x1/8 | N/A | Stainless Steel | N/A | ||||||
| DUJ-SS3000x1500 | 3" | 3.00 | 76.10 | 1.50 | 38.10 | 14.00 | 355.60 | 4.63 | 117.50 | 3.00 | 76.20 | 4.75 | 120.70 | N/A | N/A | N/A | N/A | Stainless Steel | N/A | ||||||
| DUJ-SS1000x500 | 1" | 1.00 | 25.30 | 0.50 | 12.70 | 4.88 | 123.80 | 1.69 | 42.90 | 1.19 | 30.20 | 1.50 | 38.10 | N/A | N/A | N/A | N/A | Stainless Steel | N/A | ||||||
| DUJ-SS1750x00 | 1-3/4" | 1.75 | 44.30 | 7.75 | 196.90 | 2.50 | 63.50 | 1.60 | 40.60 | 2.75 | 69.90 | N/A | N/A | N/A | N/A | Stainless Steel | N/A | ||||||||
| DUJ-SS625x00 | 5/8" | 0.62 | 15.70 | 3.25 | 82.60 | 1.13 | 28.60 | 0.81 | 20.60 | 1.00 | 25.40 | N/A | N/A | N/A | N/A | Stainless Steel | N/A | ||||||||
| DUJ-SS3000x1500K | 3" | 3.00 | 76.10 | 1.50 | 38.10 | 14.00 | 355.60 | 4.63 | 117.50 | 3.00 | 76.20 | 4.75 | 120.70 | 3/8 x 3/16 | 9.53x4.76 | 1/2-13x3/8 | N/A | Stainless Steel | N/A | ||||||
| DUJ-SS1000x500K | 1" | 1.00 | 25.30 | 0.50 | 12.70 | 4.88 | 123.80 | 1.69 | 42.90 | 1.19 | 30.20 | 1.50 | 38.10 | 1/8 x 1/16 | 1.58x3.18 | 1/4-20x3/16 | N/A | Stainless Steel | N/A | ||||||
| DUJ-SS1750x875 | 1-3/4" | 1.75 | 44.30 | 0.88 | 22.23 | 7.75 | 196.90 | 2.50 | 63.50 | 1.60 | 40.60 | 2.75 | 69.90 | N/A | N/A | N/A | N/A | Stainless Steel | N/A | ||||||
| DUJ-SS625x313 | 5/8" | 0.62 | 15.70 | 0.31 | 7.94 | 3.25 | 82.60 | 1.13 | 28.60 | 0.81 | 20.60 | 1.00 | 25.40 | N/A | N/A | N/A | N/A | Stainless Steel | N/A | ||||||
| DUJ-SS4000x00 | 4" | 4.00 | 101.50 | 17.00 | 431.80 | 5.31 | 134.90 | 3.25 | 82.60 | 6.38 | 161.90 | N/A | N/A | N/A | N/A | Stainless Steel | N/A | ||||||||
| DUJ-SS1125x00 | 1-1/8" | 1.12 | 28.40 | 5.13 | 130.20 | 1.75 | 44.50 | 1.22 | 31.00 | 1.63 | 41.30 | N/A | N/A | N/A | N/A | Stainless Steel | N/A | ||||||||
| DUJ-SS1750x875K | 1-3/4" | 1.75 | 44.30 | 0.88 | 22.23 | 7.75 | 196.90 | 2.50 | 63.50 | 1.60 | 40.60 | 2.75 | 69.90 | 3/16 x 3/32 | 4.76x2.38 | 5/16-18x5/16 | N/A | Stainless Steel | N/A | ||||||
| DUJ-SS625x313K | 5/8" | 0.62 | 15.70 | 0.31 | 7.94 | 3.25 | 82.60 | 1.13 | 28.60 | 0.81 | 20.60 | 1.00 | 25.40 | 3/32 x 3/64 | 2.38x1.19 | 10-32x1/8 | N/A | Stainless Steel | N/A | ||||||
| DUJ-SS4000x2000 | 4" | 4.00 | 101.50 | 2.00 | 50.80 | 17.00 | 431.80 | 5.31 | 134.90 | 3.25 | 82.60 | 6.38 | 161.90 | N/A | N/A | N/A | N/A | Stainless Steel | N/A | ||||||
| DUJ-SS1125x563 | 1-1/8" | 1.12 | 28.40 | 0.56 | 14.29 | 5.13 | 130.20 | 1.75 | 44.50 | 1.22 | 31.00 | 1.63 | 41.30 | N/A | N/A | N/A | N/A | Stainless Steel | N/A | ||||||
| DUJ-SS2000x00 | 2" | 2.00 | 50.70 | 8.69 | 220.70 | 2.75 | 69.90 | 1.70 | 43.20 | 3.19 | 81.00 | N/A | N/A | N/A | N/A | Stainless Steel | N/A | ||||||||
| DUJ-SS750x00 | 3/4" | 0.75 | 18.90 | 3.81 | 96.80 | 1.34 | 34.10 | 0.95 | 24.10 | 1.13 | 28.60 | N/A | N/A | N/A | N/A | Stainless Steel | N/A | ||||||||
| DUJ-SS4000x2000K | 4" | 4.00 | 101.50 | 2.00 | 50.80 | 17.00 | 431.80 | 5.31 | 134.90 | 3.25 | 82.60 | 6.38 | 161.90 | 1/2 x 1/4 | 12.7x6.35 | 1/2-13x3/4 | N/A | Stainless Steel | N/A | ||||||
| DUJ-SS1125x563K | 1-1/8" | 1.12 | 28.40 | 0.56 | 14.29 | 5.13 | 130.20 | 1.75 | 44.50 | 1.22 | 31.00 | 1.63 | 41.30 | 1/8 x 1/16 | 1.58x3.18 | 1/4-20x3/16 | N/A | Stainless Steel | N/A | ||||||
| DUJ-SS2000x1000 | 2" | 2.00 | 50.70 | 1.00 | 25.40 | 8.69 | 220.70 | 2.75 | 69.90 | 1.70 | 43.20 | 3.19 | 81.00 | N/A | N/A | N/A | N/A | Stainless Steel | N/A | ||||||
| DUJ-SS750x375 | 3/4" | 0.75 | 18.90 | 0.38 | 9.53 | 3.81 | 96.80 | 1.34 | 34.10 | 0.95 | 24.10 | 1.13 | 28.60 | N/A | N/A | N/A | N/A | Stainless Steel | N/A | ||||||
| DUJ-SS1250x00 | 1-1/4" | 1.25 | 31.60 | 5.63 | 142.90 | 1.88 | 47.60 | 1.25 | 31.80 | 1.88 | 47.60 | N/A | N/A | N/A | N/A | Stainless Steel | N/A | ||||||||
| DUJ-SS375x00 | 3/8" | 0.37 | 9.40 | 2.44 | 62.00 | 0.88 | 22.20 | 0.67 | 17.00 | 0.69 | 17.50 | N/A | N/A | N/A | N/A | Stainless Steel | N/A | ||||||||
| DUJ-SS2000x1000K | 2" | 2.00 | 50.70 | 1.00 | 25.40 | 8.69 | 220.70 | 2.75 | 69.90 | 1.70 | 43.20 | 3.19 | 81.00 | 1/4 x 1/8 | 6.35x3.12 | 3/8-16x3/8 | N/A | Stainless Steel | N/A | ||||||
| DUJ-SS750x375K | 3/4" | 0.75 | 18.90 | 0.38 | 9.53 | 3.81 | 96.80 | 1.34 | 34.10 | 0.95 | 24.10 | 1.13 | 28.60 | 3/32 x 3/64 | 2.38x1.19 | 10-32x1/8 | N/A | Stainless Steel | N/A | ||||||
| DUJ-SS1250x625 | 1-1/4" | 1.25 | 31.60 | 0.63 | 15.88 | 5.63 | 142.90 | 1.88 | 47.60 | 1.25 | 31.80 | 1.88 | 47.60 | N/A | N/A | N/A | N/A | Stainless Steel | N/A | ||||||
| DUJ-SS375x188 | 3/8" | 0.37 | 9.40 | 0.19 | 4.76 | 2.44 | 62.00 | 0.88 | 22.20 | 0.67 | 17.00 | 0.69 | 17.50 | N/A | N/A | N/A | N/A | Stainless Steel | N/A | ||||||
| DUJ-SS2500x00 | 2-1/2" | 2.50 | 63.40 | 11.06 | 281.00 | 3.50 | 88.90 | 2.09 | 53.10 | 4.06 | 103.20 | N/A | N/A | N/A | N/A | Stainless Steel | N/A | ||||||||
| DUJ-SS875x00 | 7/8" | 0.87 | 22.10 | 4.38 | 111.10 | 1.50 | 38.10 | 1.03 | 26.20 | 1.38 | 34.90 | N/A | N/A | N/A | N/A | Stainless Steel | N/A | ||||||||
| DUJ-SS1250x625K | 1-1/4" | 1.25 | 31.60 | 0.63 | 15.88 | 5.63 | 142.90 | 1.88 | 47.60 | 1.25 | 31.80 | 1.88 | 47.60 | 3/16 x 3/32 | 4.76x2.38 | 5/16-18x1/4 | N/A | Stainless Steel | N/A | ||||||
| DUJ-SS375x188-1SS | 3/8" | 0.37 | 9.40 | 0.19 | 4.76 | 2.44 | 62.00 | 0.88 | 22.20 | 0.67 | 17.00 | 0.69 | 17.50 | N/A | N/A | 2-56x3/32 | N/A | Stainless Steel | N/A | ||||||
| DUJ-SS2500x1250 | 2-1/2" | 2.50 | 63.40 | 1.25 | 31.75 | 11.06 | 281.00 | 3.50 | 88.90 | 2.09 | 53.10 | 4.06 | 103.20 | N/A | N/A | N/A | N/A | Stainless Steel | N/A | ||||||
| DUJ-SS875x438 | 7/8" | 0.87 | 22.10 | 0.44 | 11.11 | 4.38 | 111.10 | 1.50 | 38.10 | 1.03 | 26.20 | 1.38 | 34.90 | N/A | N/A | N/A | N/A | Stainless Steel | N/A |
