Heavy Duty Double Universal Joints

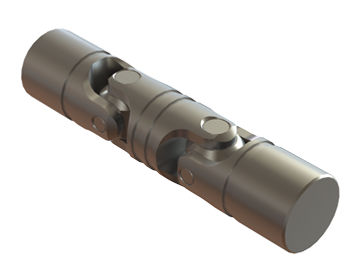

Our Heavy-Duty Double Universal Joints deliver minimal play, accurate positioning and flexibility under high operating angles. With a maximum combined working angle of 90° (45° per joint), they provide uniform speed-ratio between driving and driven shafts (with parallel output shafts). The standard material for heavy-duty double joints is high-grade alloy steel. They are also available in stainless steel and a variety of other materials and finishes.

  • Outside Diameter: 0.37"-4.00" [9,4mm-100mm]
  • Operating Torque: 18-19,800 Lb-In [2-2,237 N-m]
  • Breaking Torque: 90-99,000 Lb-In [10-11,186 N-m]
  • Operating Speed: up to 1000 RPM (depending on lubrication)
  • Operating Angle: up to 90° (45° per joint); special designs with higher angles may also be available
  • Material for Yokes: alloy steel, hardened, precision honed & ground
  • Material for Pins & Blocks: alloy steel, hardened and precision ground
  • Boot grooves are standard (parts without grooves available upon request)
  • Regular re-lubrication required, or joint can be fitted with grease packed boots
  • Bores and Keyways optional
  • Hub ends available with several standard bore configurations (Plain bore, Keyway, Hex-/Square bore)
  • Optionally available plating: Zink, Nickel, Cadmium, MoS2, Black Oxide
Torque Values by Outside Diameter
Nominal OD (in) Max. Operating Torque Lb-in [N-m] Ultimate Torque Lb-in [N-m]
3/8" 18 [2.0] 90 [10]
1/2" 63 [7.1] 315 [35]
5/8" 122 [13] 610 [68]
3/4" 225 [25] 1125 [127]
7/8" 315 [35] 1575 [178]
1" 405 [45] 2025 [228]
1-1/8" 585 [66] 2925 [330]
1-1/4" 940 [106] 4700 [531]
1-1/2" 1800 [203] 9000 [1016]
1-3/4" 2610 [294] 13050 [1474]

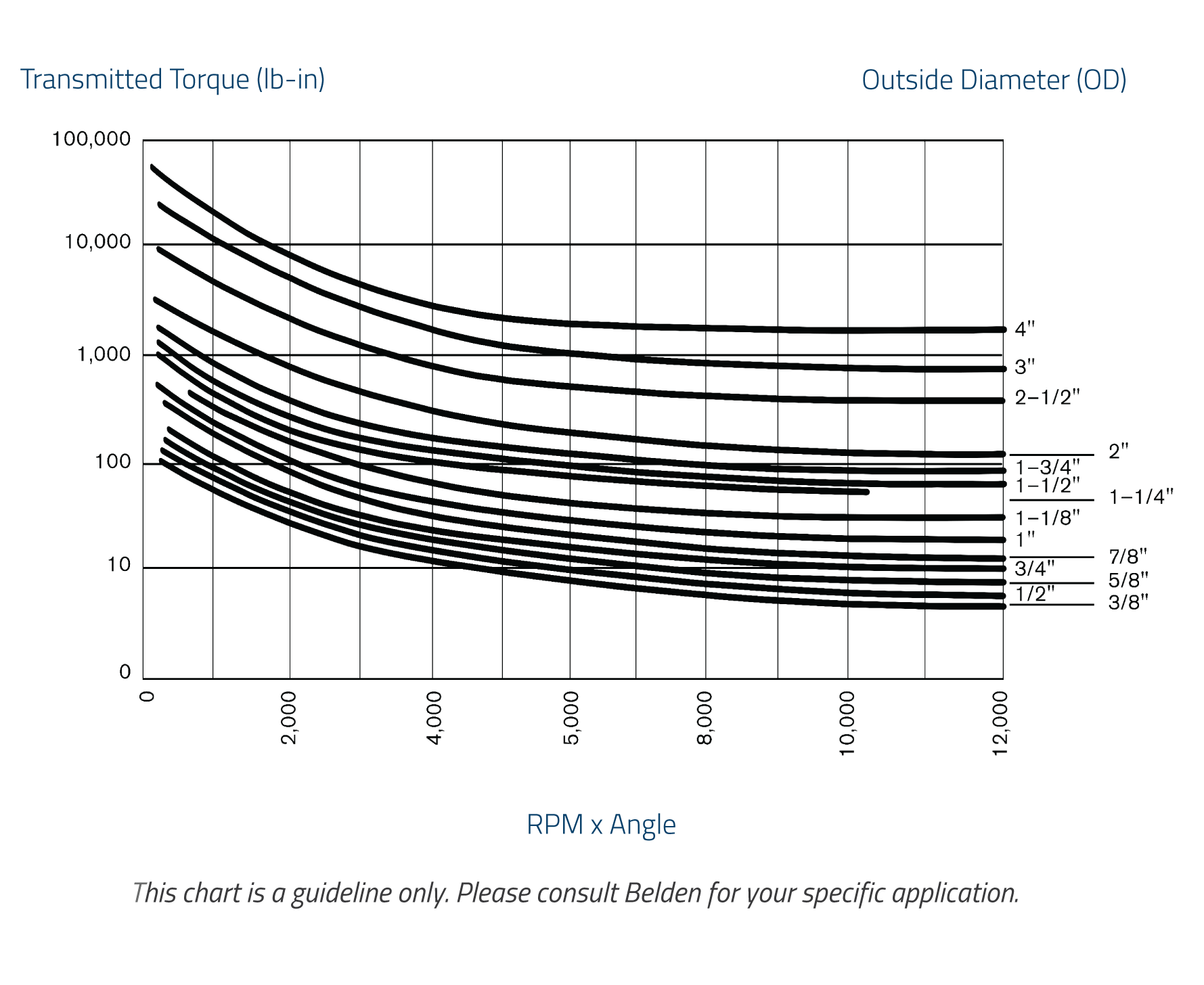

Performance Rating Curves

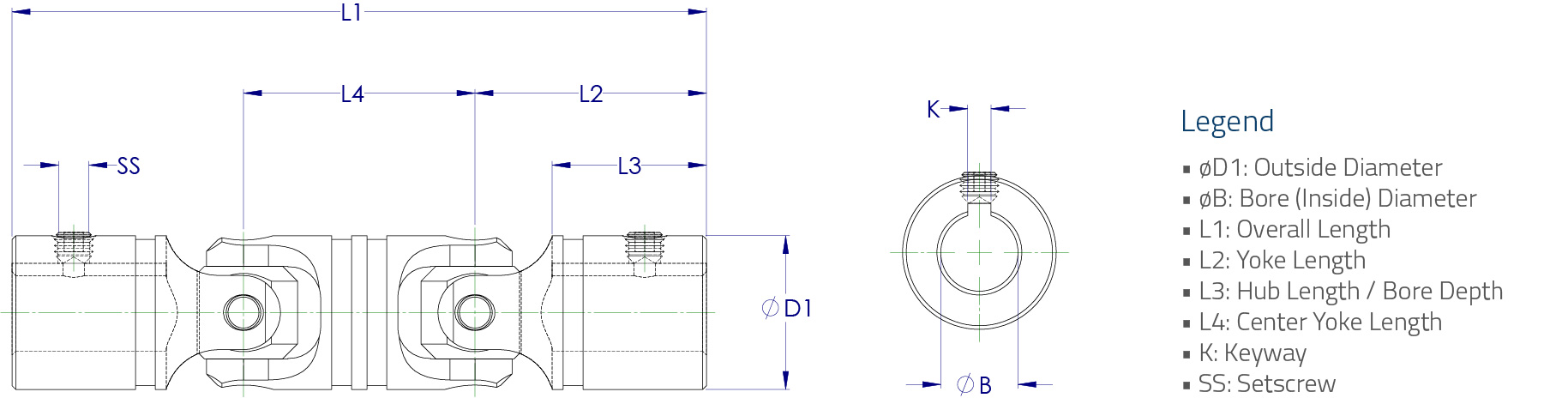

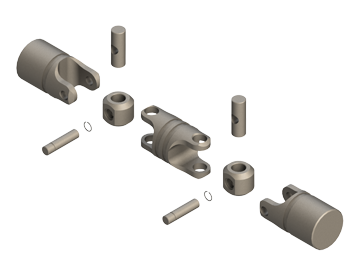

Product Diagram
Matching Products
Part Number ØD1 Nominal (in) ØD1 Nominal (mm) ØD1 (in) ØD1 (mm) H (in) H (mm) D2 (in) D2 (mm) ØB (in) ØB (mm) L1 (in) L1 (mm) L2 (in) L2 (mm) L3 (in) L3 (mm) L4 (in) L4 (mm) K (in) K (mm) SS Bellows Material NSN Weight
DUJ-HD1500x00 1-1/2" 1.50 38.00 6.56 166.70 2.13 54.00 1.40 35.60 2.31 58.70 N/A N/A N/A N/A Alloy Steel N/A
DUJ-HD500x00 1/2" 0.50 12.60 2.81 71.40 1.00 25.40 0.74 18.80 0.81 20.60 N/A N/A N/A N/A Alloy Steel N/A
DUJ-HD2500x1250K 2-1/2" 2.50 63.40 1.25 31.75 11.06 281.00 3.50 88.90 2.09 53.10 4.06 103.20 1/4 x 1/8 6.35x3.12 3/8-16x1/2 N/A Alloy Steel N/A
DUJ-HD875x438K 7/8" 0.87 22.10 0.44 11.11 4.38 111.10 1.50 38.10 1.03 26.20 1.38 34.90 3/32 x 3/64 2.38x1.19 10-32x1/8 N/A Alloy Steel N/A
DUJ-HD1500x750 1-1/2" 1.50 38.00 0.75 19.05 6.56 166.70 2.13 54.00 1.40 35.60 2.31 58.70 N/A N/A N/A N/A Alloy Steel N/A
DUJ-HD500x250 1/2" 0.50 12.60 0.25 6.35 2.81 71.40 1.00 25.40 0.74 18.80 0.81 20.60 N/A N/A N/A N/A Alloy Steel N/A
DUJ-HD3000x00 3" 3.00 76.10 14.00 355.60 4.63 117.50 3.00 76.20 4.75 120.70 N/A N/A N/A N/A Alloy Steel N/A
DUJ-HD1000x00 1" 1.00 25.30 4.88 123.80 1.69 42.90 1.19 30.20 1.50 38.10 N/A N/A N/A N/A Alloy Steel N/A
DUJ-HD1500x750K 1-1/2" 1.50 38.00 0.75 19.05 6.56 166.70 2.13 54.00 1.40 35.60 2.31 58.70 3/16 x 3/32 4.76x2.38 5/16-18x5/16 N/A Alloy Steel N/A
DUJ-HD500x250-1SS 1/2" 0.50 12.60 0.25 6.35 2.81 71.40 1.00 25.40 0.74 18.80 0.81 20.60 N/A N/A 4-40x1/8 N/A Alloy Steel N/A
DUJ-HD3000x1500 3" 3.00 76.10 1.50 38.10 14.00 355.60 4.63 117.50 3.00 76.20 4.75 120.70 N/A N/A N/A N/A Alloy Steel N/A
DUJ-HD1000x500 1" 1.00 25.30 0.50 12.70 4.88 123.80 1.69 42.90 1.19 30.20 1.50 38.10 N/A N/A N/A N/A Alloy Steel N/A
DUJ-HD1750x00 1-3/4" 1.75 44.30 7.75 196.90 2.50 63.50 1.60 40.60 2.75 69.90 N/A N/A N/A N/A Alloy Steel N/A
DUJ-HD625x00 5/8" 0.62 15.70 3.25 82.60 1.13 28.60 0.81 20.60 1.00 25.40 N/A N/A N/A N/A Alloy Steel N/A
DUJ-HD3000x1500K 3" 3.00 76.10 1.50 38.10 14.00 355.60 4.63 117.50 3.00 76.20 4.75 120.70 3/8 x 3/16 9.53x4.76 1/2-13x3/8 N/A Alloy Steel N/A
DUJ-HD1000x500K 1" 1.00 25.30 0.50 12.70 4.88 123.80 1.69 42.90 1.19 30.20 1.50 38.10 1/8 x 1/16 1.58x3.18 1/4-20x3/16 N/A Alloy Steel N/A
DUJ-HD1750x875 1-3/4" 1.75 44.30 0.88 22.23 7.75 196.90 2.50 63.50 1.60 40.60 2.75 69.90 N/A N/A N/A N/A Alloy Steel N/A
DUJ-HD625x313 5/8" 0.62 15.70 0.31 7.94 3.25 82.60 1.13 28.60 0.81 20.60 1.00 25.40 N/A N/A N/A N/A Alloy Steel N/A
DUJ-HD4000x00 4" 4.00 101.50 17.00 431.80 5.31 134.90 3.25 82.60 6.38 161.90 N/A N/A N/A N/A Alloy Steel N/A
DUJ-HD1125x00 1-1/8" 1.12 28.40 5.13 130.20 1.75 44.50 1.22 31.00 1.63 41.30 N/A N/A N/A N/A Alloy Steel N/A
DUJ-HD1750x875K 1-3/4" 1.75 44.30 0.88 22.23 7.75 196.90 2.50 63.50 1.60 40.60 2.75 69.90 3/16 x 3/32 4.76x2.38 5/16-18x5/16 N/A Alloy Steel N/A
DUJ-HD625x313K 5/8" 0.62 15.70 0.31 7.94 3.25 82.60 1.13 28.60 0.81 20.60 1.00 25.40 3/32 x 3/64 2.38x1.19 10-32x1/8 N/A Alloy Steel N/A
DUJ-HD4000x2000 4" 4.00 101.50 2.00 50.80 17.00 431.80 5.31 134.90 3.25 82.60 6.38 161.90 N/A N/A N/A N/A Alloy Steel N/A
DUJ-HD1125x563 1-1/8" 1.12 28.40 0.56 14.29 5.13 130.20 1.75 44.50 1.22 31.00 1.63 41.30 N/A N/A N/A N/A Alloy Steel N/A
DUJ-HD2000x00 2" 2.00 50.70 8.69 220.70 2.75 69.80 1.70 43.20 3.19 81.00 N/A N/A N/A N/A Alloy Steel N/A
DUJ-HD750x00 3/4" 0.75 18.90 3.81 96.90 1.34 34.10 0.95 24.10 1.13 28.60 N/A N/A N/A N/A Alloy Steel N/A
DUJ-HD4000x2000K 4" 4.00 101.50 2.00 50.80 17.00 431.80 5.31 134.90 3.25 82.60 6.38 161.90 1/2 x 1/4 12.7x6.35 1/2-13x3/4 N/A Alloy Steel N/A
DUJ-HD1125x563K 1-1/8" 1.12 28.40 0.56 14.29 5.13 130.20 1.75 44.50 1.22 31.00 1.63 41.30 1/8 x 1/16 1.58x3.18 1/4-20x3/16 N/A Alloy Steel N/A
DUJ-HD2000x1000 2" 2.00 50.70 1.00 25.40 8.69 220.70 2.75 69.80 1.70 43.20 3.19 81.00 N/A N/A N/A N/A Alloy Steel N/A
DUJ-HD750x375 3/4" 0.75 18.90 0.38 9.53 3.81 96.90 1.34 34.10 0.95 24.10 1.13 28.60 N/A N/A N/A N/A Alloy Steel N/A
DUJ-HD1250x00 1-1/4" 1.25 31.60 5.63 142.90 1.88 47.60 1.25 31.80 1.88 47.60 N/A N/A N/A N/A Alloy Steel N/A
DUJ-HD375x00 3/8" 0.37 9.40 2.44 62.00 0.88 22.20 0.67 17.00 0.69 17.50 N/A N/A N/A N/A Alloy Steel N/A
DUJ-HD2000x1000K 2" 2.00 50.70 1.00 25.40 8.69 220.70 2.75 69.80 1.70 43.20 3.19 81.00 1/4 x 1/8 6.35x3.12 3/8-16x3/8 N/A Alloy Steel N/A
DUJ-HD750x375K 3/4" 0.75 18.90 0.38 9.53 3.81 96.90 1.34 34.10 0.95 24.10 1.13 28.60 3/32 x 3/64 2.38x1.19 10-32x1/8 N/A Alloy Steel N/A
DUJ-HD1250x625 1-1/4" 1.25 31.60 0.63 15.88 5.63 142.90 1.88 47.60 1.25 31.80 1.88 47.60 N/A N/A N/A N/A Alloy Steel N/A
DUJ-HD375x188 3/8" 0.37 9.40 0.19 4.76 2.44 62.00 0.88 22.20 0.67 17.00 0.69 17.50 N/A N/A N/A N/A Alloy Steel N/A
DUJ-HD2500x00 2-1/2" 2.50 63.40 11.06 281.00 3.50 88.90 2.09 53.10 4.06 103.20 N/A N/A N/A N/A Alloy Steel N/A
DUJ-HD875x00 7/8" 0.87 22.10 4.38 111.10 1.50 38.10 1.03 26.20 1.38 34.90 N/A N/A N/A N/A Alloy Steel N/A
DUJ-HD1250x625K 1-1/4" 1.25 31.60 0.63 15.88 5.63 142.90 1.88 47.60 1.25 31.80 1.88 47.60 3/16 x 3/32 4.76x2.38 5/16-18x1/4 N/A Alloy Steel N/A
DUJ-HD375x188-1SS 3/8" 0.37 9.40 0.19 4.76 2.44 62.00 0.88 22.20 0.67 17.00 0.69 17.50 N/A N/A 2-56x3/32 N/A Alloy Steel N/A
DUJ-HD2500x1250 2-1/2" 2.50 63.40 1.25 31.75 11.06 281.00 3.50 88.90 2.09 53.10 4.06 103.20 N/A N/A N/A N/A Alloy Steel N/A
DUJ-HD875x438 7/8" 0.87 22.10 0.44 11.11 4.38 111.10 1.50 38.10 1.03 26.20 1.38 34.90 N/A N/A N/A N/A Alloy Steel N/A
