DUJ-HD1000x00

Click to enlarge photo

Click to enlarge photo

Hide General Information

Part Name:

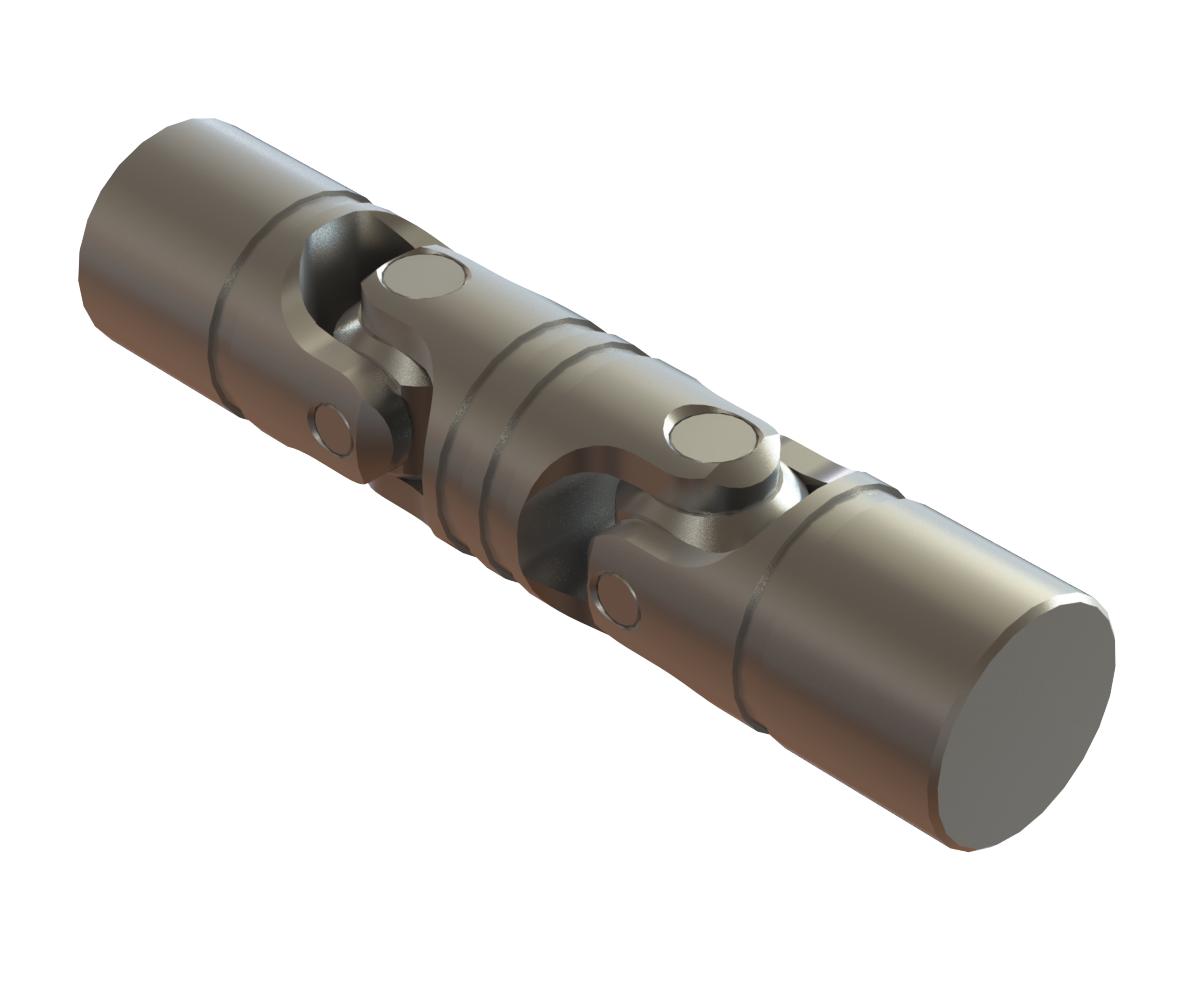

Heavy Duty - Double Universal Joint

Size Code:

1000

Bore Sizing:

Inch

Inch Metric:

Inch

Hide Product Specifications

Part Type:

Double Universal Joint

Part Design:

Heavy Duty

Part Style:

Pin & Block - Friction Bearing

Part Material:

Alloy Steel

Hide Performance Data

Ultimate Torque (in-lbf):

2025

Ultimate Torque (Nm):

228.80

Torque Rating (in-lbf):

405

Torque Rating (Nm):

46

Operating_Angle:

90

Hide Dimensional Data

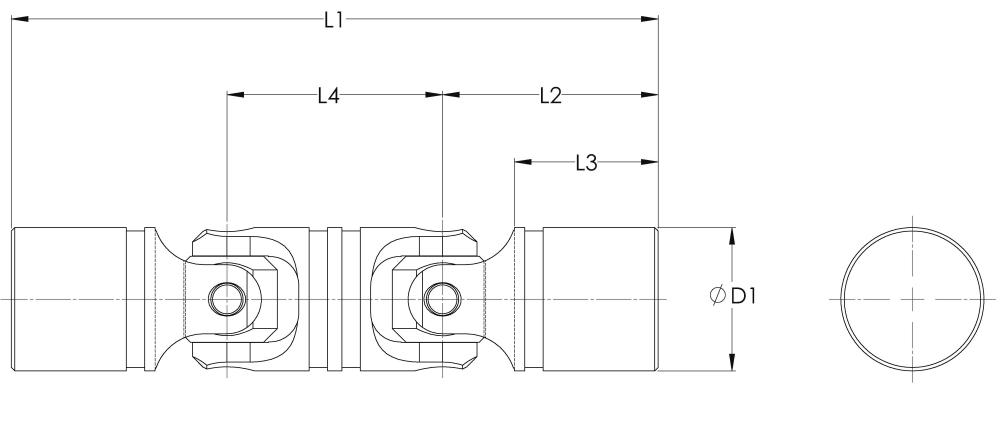

Joint Outside Diameter D (in):

1.00

Joint Outside Diameter D (mm):

25.40

Joint Outside Diameter Nominal D (in):

1"

Joint Outside Diameter Nominal D (mm):

n/a

Insp. Hole Location H (in):

n/a

Insp. Hole Location H (mm):

n/a

Overall Length L1 (in):

4.88

Overall Length L1 (mm):

123.80

Yoke Length L2 (in):

1.69

Yoke Length L2 (mm):

42.90

Hub Depth L3 (in):

1.19

Hub Depth L3 (mm):

30.20

Bore diameter B (in):

n/a

Bore diameter B (mm):

n/a

Keyway K (in):

n/a

Keyway K (mm):

n/a

Set Screw:

n/a

Bore Type:

Solid

Bellows:

n/a

Additional info:
